智能机器人

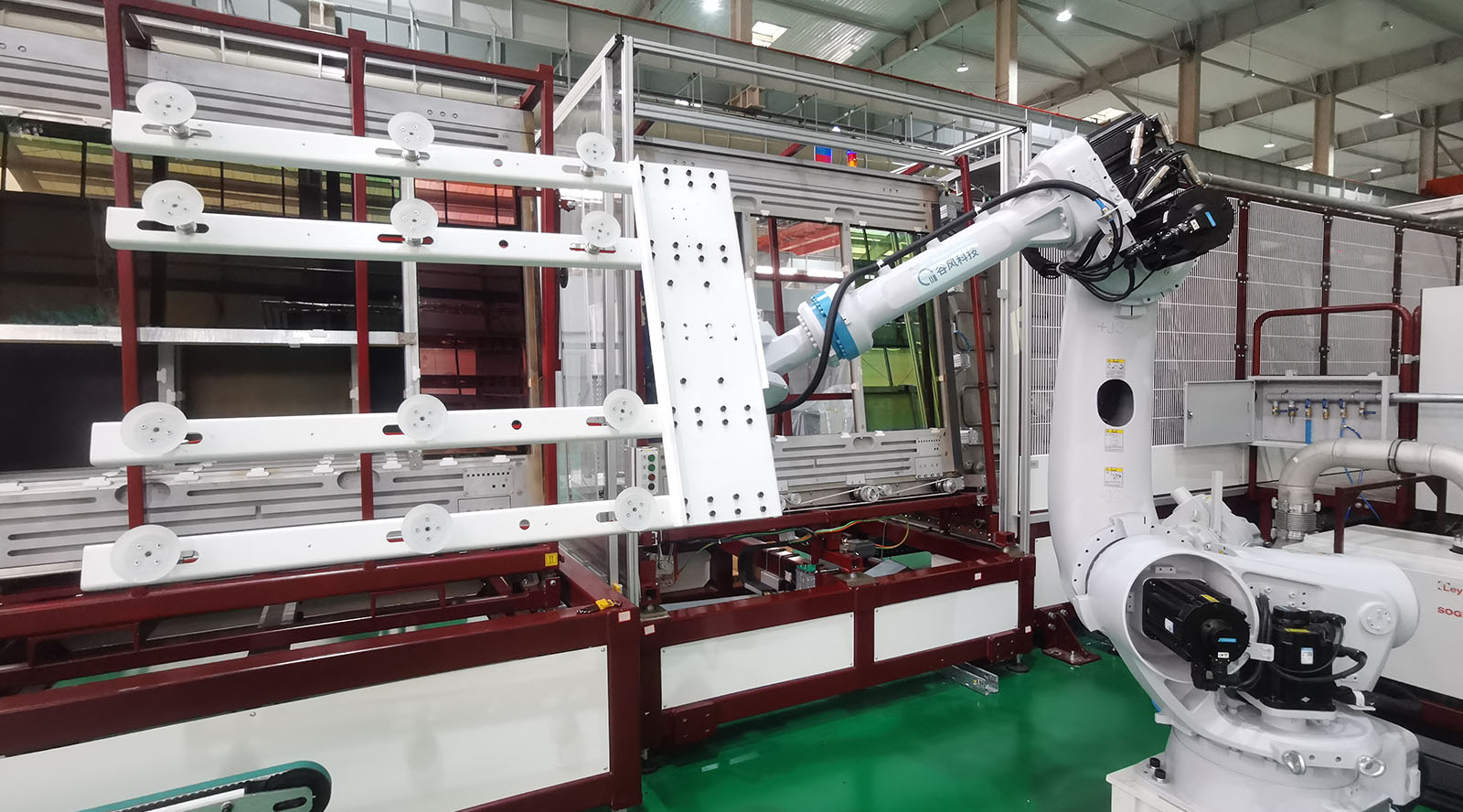

主要应用于磨边线后分片,中空线上片,理片笼上片等。常规款机器人采用六轴结构,负载范围50~220kg,作业范围3000mm以内。可分3~4个工位上下片,根据实际需要可按玻璃大小分类落架,按客户信息分类落架,亦可按照加工工艺分类落架。
产品优势:精度高、占地小、灵活迅捷、安全高效。

Mainly used for separating sheets after edge grinding, placing sheets on hollow lines, and placing sheets on sheet sorting racks, etc. The conventional robot uses a six-axis structure, with a load capacity of 50~220kg and an operating range within 3000mm. It can handle 3~4 workstations for loading and unloading sheets, and sheets can be sorted by glass size, customer information, or processing workflow according to actual needs. It occupies little space, is flexible and fast, and is safe and efficient.

技术参数

  • 最大下片玻璃尺寸(mm):2500×2000mm
  • 最小下片玻璃尺寸(mm):400×700mm
  • 下片玻璃厚度(mm):3-10mm
  • 下片速度:2-6片/分钟
  • 最大下片负荷:150Kg
  • 下片工位:1~4工位
  • 整机总功率(KW):25KW(具体以设计为准)
  • 电源:380V 50Hz
  • 压缩空气:0.5-0.8Mpa
  • 定位方式:视觉识别、固定定位等(具体以工艺要求为准)
  • 定位精度:0.5mm
  • 最大下片玻璃尺寸(mm):2500×2000mm
  • 最小下片玻璃尺寸(mm):400×700mm
  • 下片玻璃厚度(mm):3-10mm
  • 下片速度:2-6片/分钟
  • 最大下片负荷:150Kg
  • 下片工位:1~4工位
  • 整机总功率(KW):25KW(具体以设计为准)
  • 电源:380V 50Hz
  • 压缩空气:0.5-0.8Mpa
  • 定位方式:视觉识别、固定定位等(具体以工艺要求为准)
  • 定位精度:0.5mm
