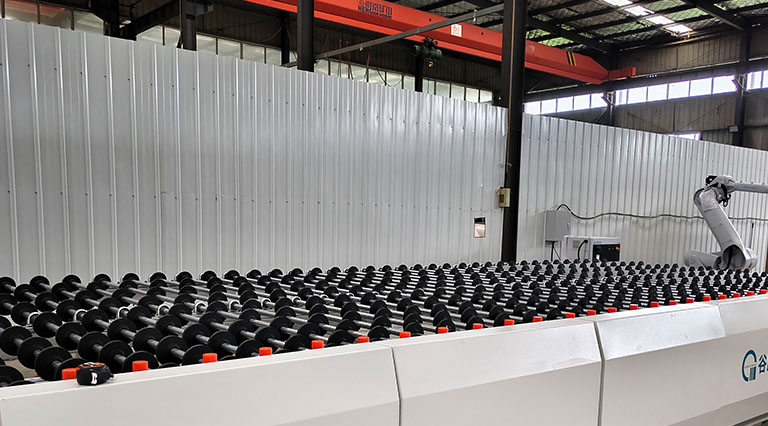

切磨连线

玻璃深加工厂,传统设备生产方式各个工段设备间独立运行,存在三大弊端:
1、安全隐患。玻璃频繁人工搬运,有很大的人员伤害风险;
2、良品率低。玻璃频繁搬上搬下,工段间玻璃的运输,生产过程中很大程度上增加了玻璃的划伤、损坏概率,严重影响玻璃品质和降低玻璃成品率。
3、人力浪费。同时各工段间生产必须人力配合,造成非必要的人工成本支出。

要解决以上问题,可在各设备间增加连线设备,打通各个生产环节。连线方案可根据生产实际进行定制,占用场地小,投入成本少,稳定可靠。

Glass deep-processing factories, relying on traditional equipment production methods, have each section operating independently, which presents three major drawbacks:
1. Safety hazards. Glass is frequently handled manually, posing a significant risk of injury to personnel;
2. Low yield. Frequent lifting and moving of glass, as well as transportation between sections, greatly increases the likelihood of scratches and damage during production, seriously affecting glass quality and reducing the finished product yield;
3. Wasted labor. Manual coordination is required between sections, resulting in unnecessary labor costs.

To address the above issues, connection devices can be added between various pieces of equipment to integrate all production stages. The connection plan can be customized according to actual production needs, occupying little space, requiring low investment, and being stable and reliable.

技术参数

1.最大玻璃尺寸(mm):2500×2000
2.最小玻璃尺寸(mm):400×700
3.传输速度:0-30m/min
4.单机功率:1.1KW(具体以设计为准)
5.电源:380V 50Hz
6.压缩空气:0.5-0.8Mpa
7.台面高度:900±20mm(可调节)
8.重量:约700KG(具体以设计为准)
9.外形尺寸(mm): 2500*2000*900(长*宽*高)(具体以设计为准)

注:此为2520标准过渡台参数,特殊需要可进行定制。

1.最大玻璃尺寸(mm):3000×2000
2.最小玻璃尺寸(mm):400×700
3.传输速度:0-30m/min
4.单机功率:1.5KW(具体以设计为准)
5.电源:380V 50Hz
6.压缩空气:0.5-0.8Mpa
7.台面高度(mm):900±20(可调节)
8.重量:约900KG(具体以设计为准)
9.外形尺寸(mm): 3000*3000*900(长*宽*高)(具体以设计为准)

注:此为3020标准过渡台参数,特殊需要可进行定制。
